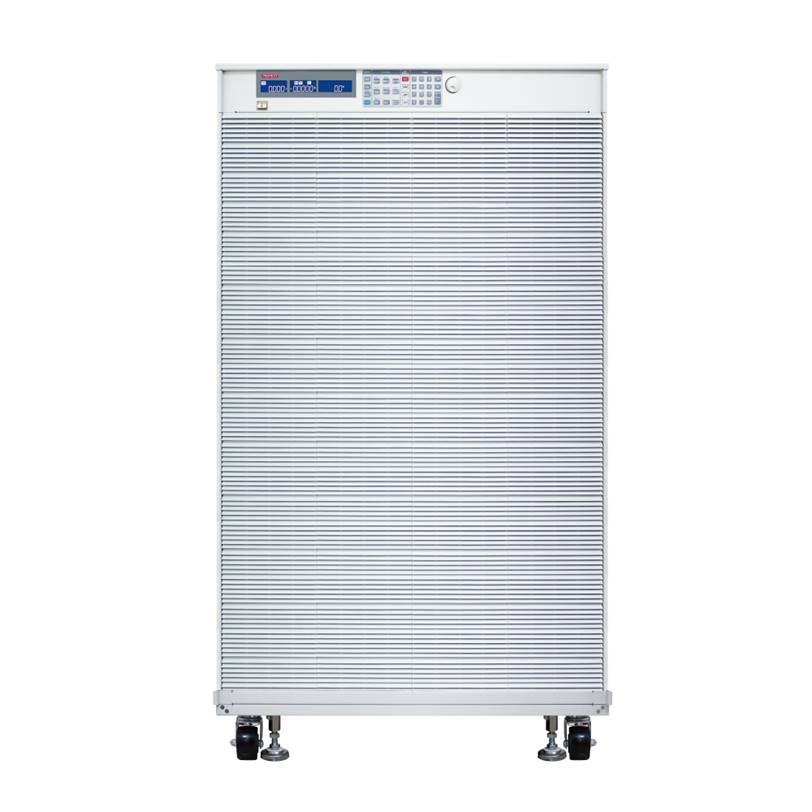

36360E
Compact High Power DC Electronic Load（1250V）1250V, 300A, 60KW
Description
l 36300E Series
has its own control and display panel, CC / CR / CV / CP / Dynamic modes, 150
sets Store / Recall memory which provides load set-up more efficiently, also
can be remote controlled via GPIB、RS232、USB and LAN interface.
l SHORT time
setting and SHORT_VH, SHORT_VL
setting function, also can measure Short Voltage and Current.
l Dynamic can be
simulated under CC, CP mode. The current Rise / Fall slew rate can be adjusted
individually and there is an external signal input for a Arbitrary Waveform to simulate load current.
l Single key for OCP、OPP test function will be more efficiency and accuracy on OCP、OPP testing.
l Programmable
Load ON/OFF voltage, GO/NG meter check, Voltage meter display
” + “ or “ – “ is selectable
and 150 sets Store/Recall larger memory is much advance feature for each
different application.
l 150 sets test
parameter and status storage function, user can recall the storage memory real
time in accordance with the auto sequence requirement.
l Maximum Voltage
up to 1250V provide an idea testing solution for Power Factor Correction test.
l
Master / Slave control units
maximum up to 1 MASTER, 7 SLAVE.
Features
l
With parallel
function maximum power up to 480KW.
l
Maximum up to 8
units master / slave parallel control.
l
5
digit V/A/W Meter.
l
High-speed
measurement and communication transmission.
l
Large LCD Display、setting values can be adjusted by rotary knob or push button.
l
Voltage、Current and Watt value can be displayed simultaneously.
l
Capable for Power
Factor Correction (PFC) Test.
l
OCP、OPP test function
automatically.
l
Power ON status can
be set.
l
CC, CR, CV, CP , CC+CV , CP+CV
, Dynamic and Short operation mode.
l
SHORT time setting.
l
Protections against I,W,°C and over-voltage alert.
l
Voltage meter
display the polarity positive（”＋”）or negative（”－”）is
selectable.
l
Optional Interface :
GPIB、RS232、USB、LAN.
l
Built-in soft-start
circuit function allowing the U.U.T. power supply to
be directly connected to the 36300E series load input terminal, no longer need
a large relay switch with an external soft-start circuit.
l
New waveform
generator plug in model 9923 adds user programmable
battery dischargecurrent waveform simulation to Prodigit DC Loads.

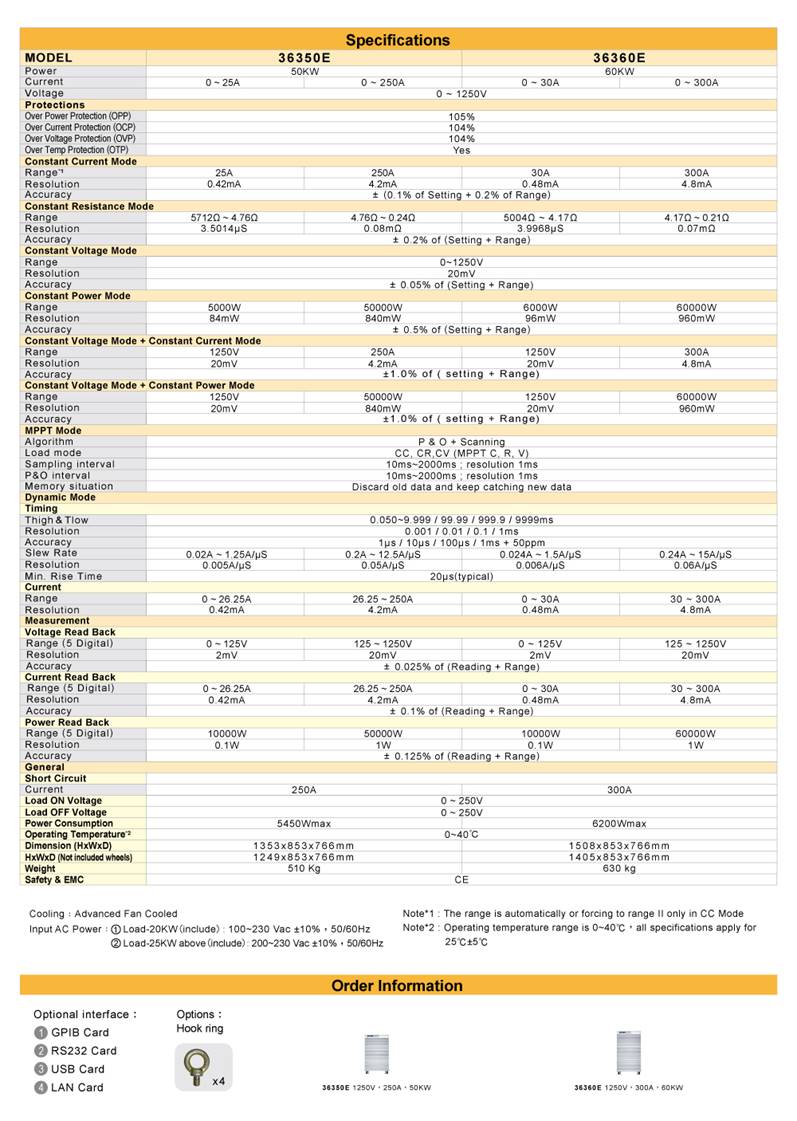

Specifications
